Create EDS Application in Azure

Create EDS Application in Azure

  1. Sign into the appropriate Azure tenant.

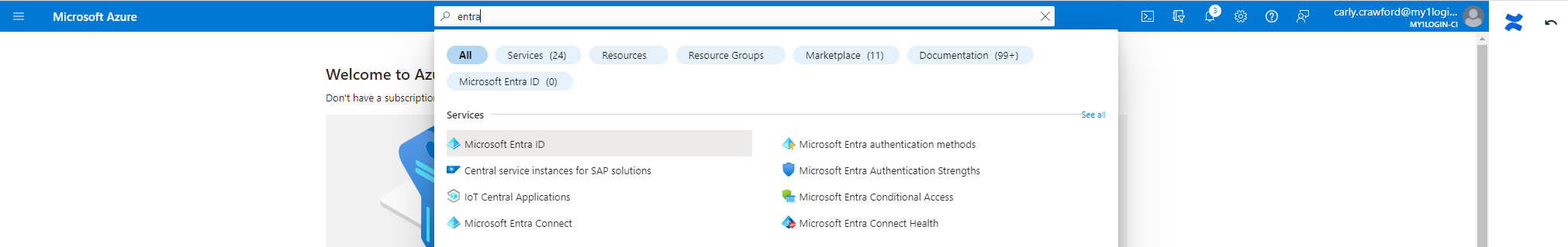

  2. Access Microsoft Entra ID:
  3. Click “App registrations” in the sidebar, then click “New registration”:

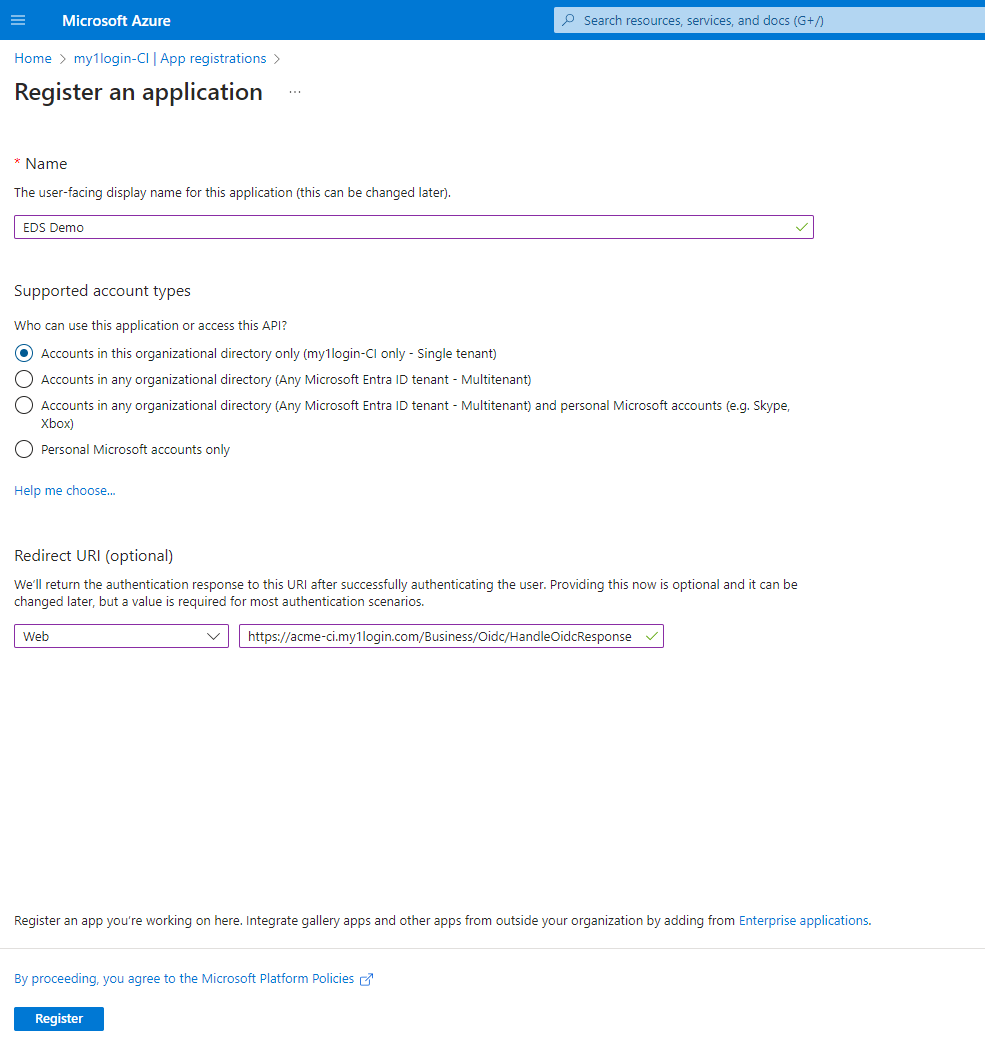

  4. Enter a name for the application, i.e. EDS
    Under “Supported account types”, select “Accounts in this organizational directory only”
    Under “Redirect URI”, select Web and enter the URI:
    - <M1L domain for environment>/Business/Oidc/HandleOidcResponse
    - i.e. for UAT, this will be: https://acme-uat.arandomwebaddress.com/Business/Oidc/HandleOidcResponse
    Click “Register”

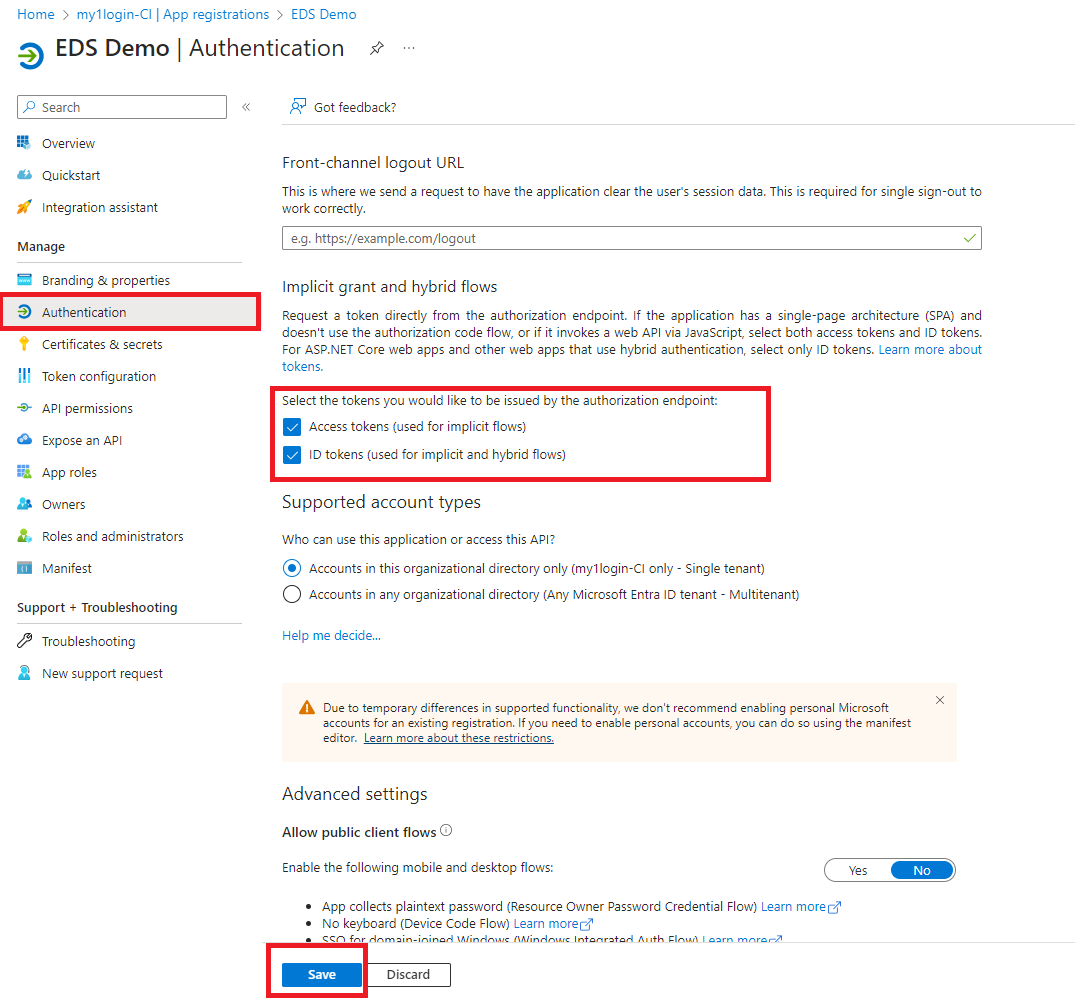

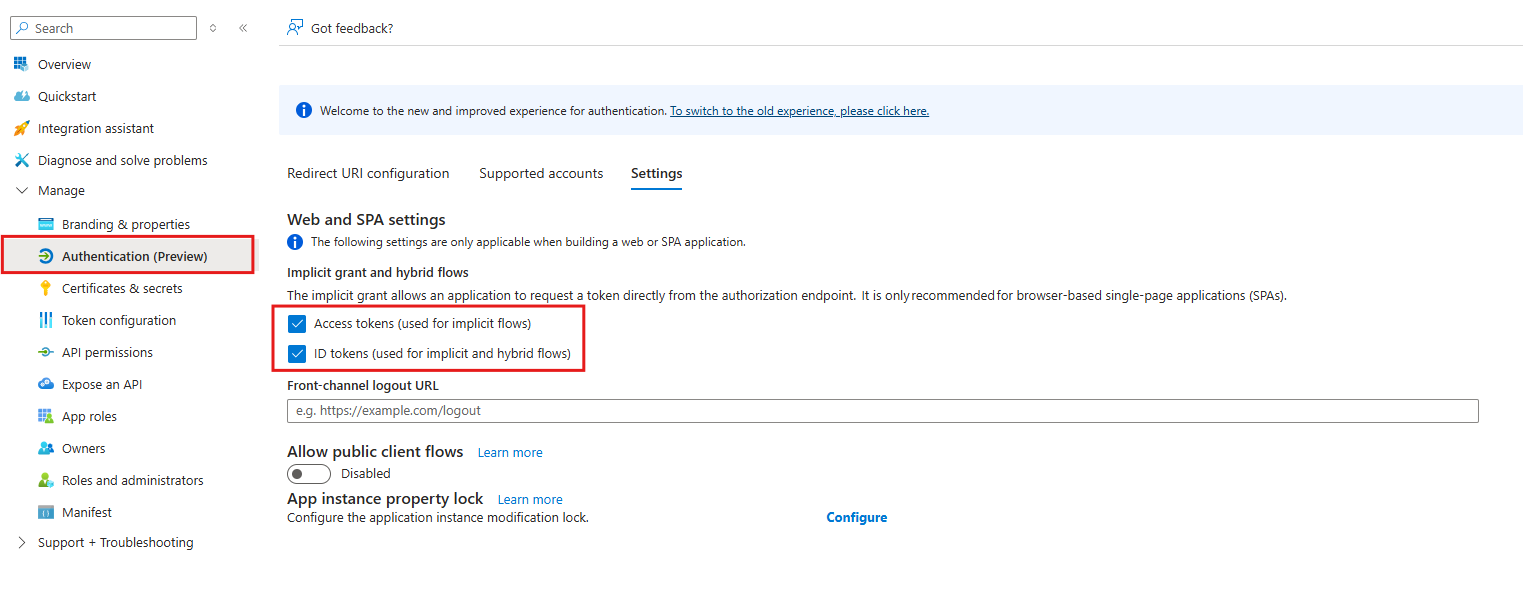

  5. In the sidebar, click “Authentication”
    Under “Implicit grant and hybrid flows”, check both “Access tokens” and “ID tokens”
    Click Save

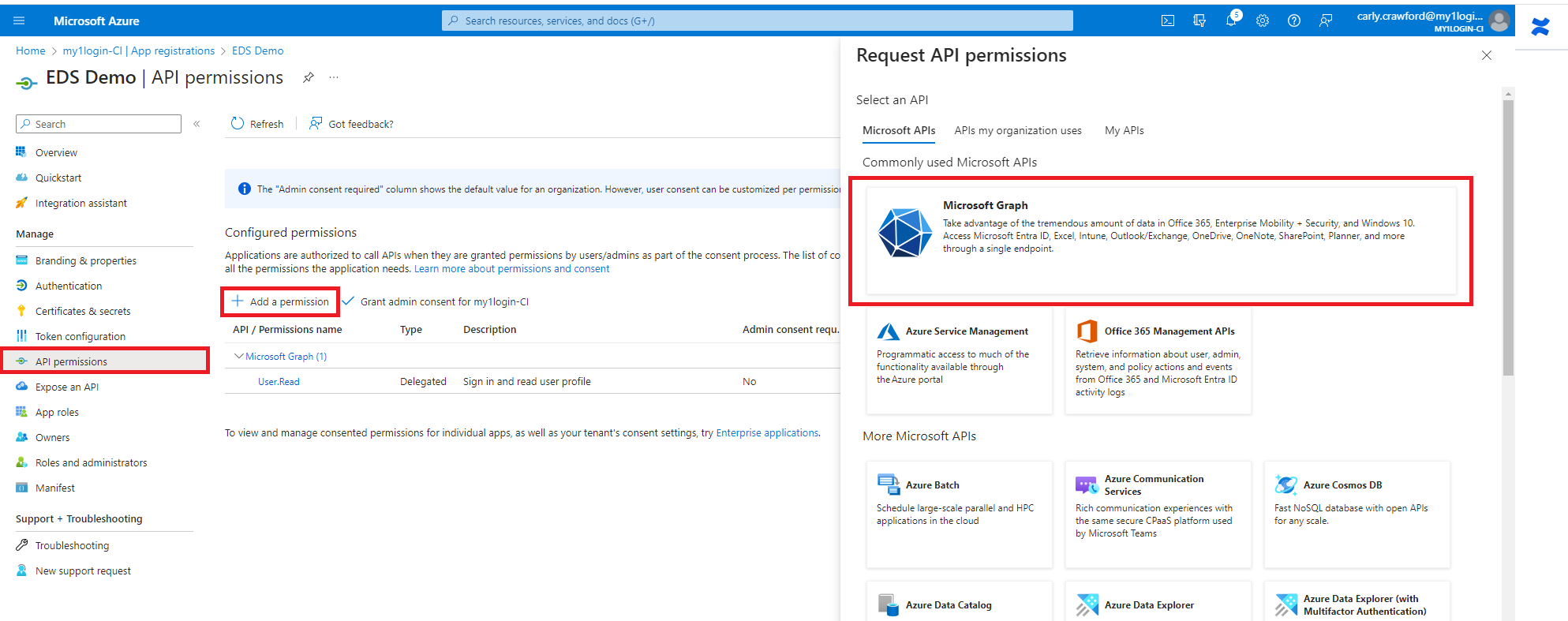

  6. In the sidebar, click “API permissions”
    Click “Add a permission”
    Click “Microsoft Graph”

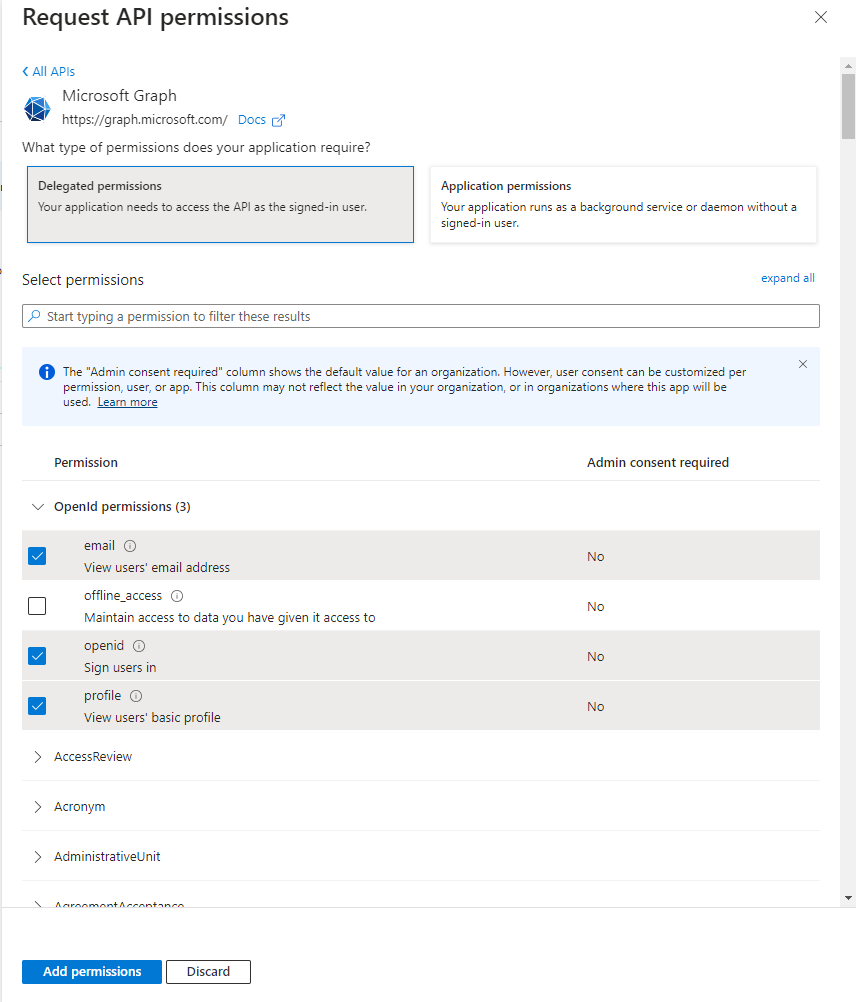

  7. Click “Delegated Permissions” and select the following:
    OpenId permissions:
    - email
    - openid
    - profile

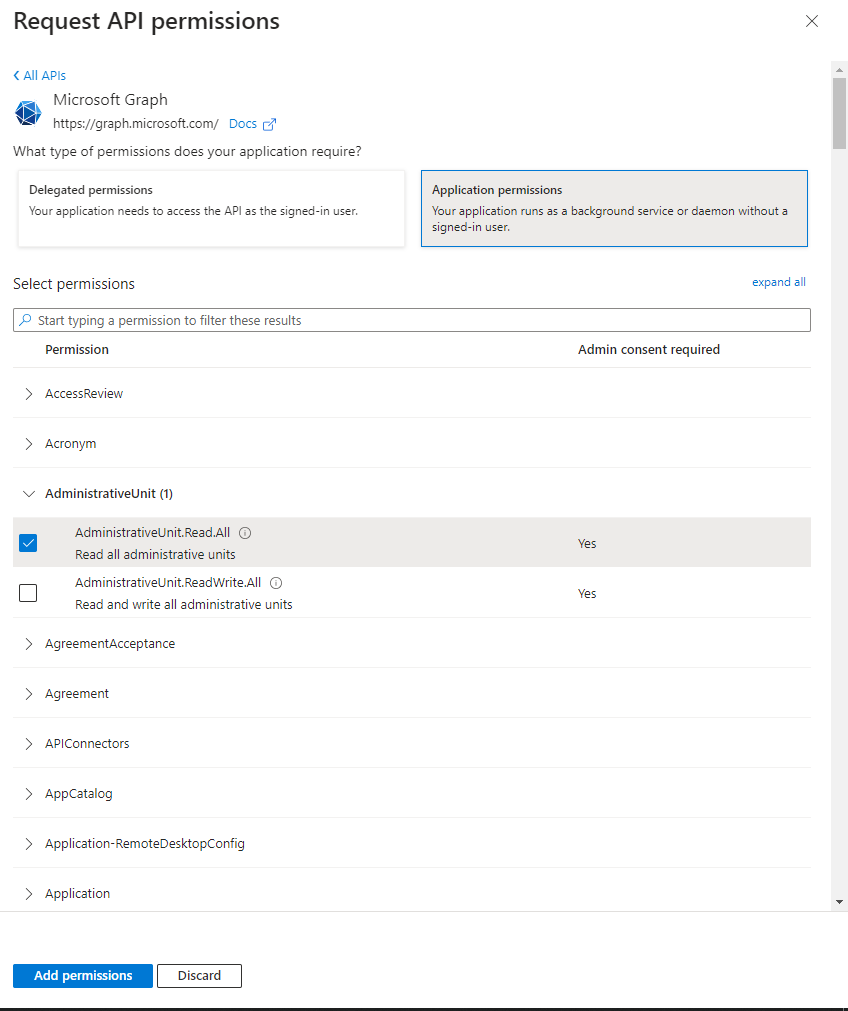

  8. Go back to the top of the pack and click “Application permissions”, then select the following:
    - AdministrativeUnit → AdministrativeUnit.Read.All
    - Group → Group.Read.All
    - User → User.Read.All
    Click “Add permissions”
  9. Click “Grant admin consent for <tenant name>” and then click “Yes”
